- Working Voltage: DC 5V /Working current: 0.3A (maximum) /Maximum power: 3W

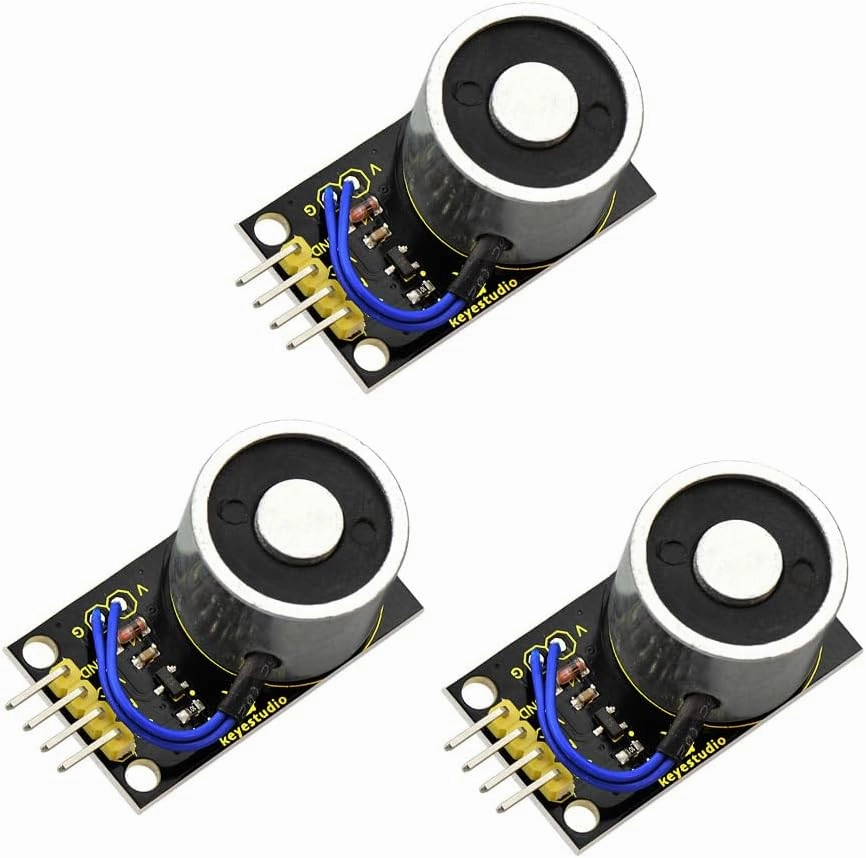

- This module mainly contains an electromagnet. It is powerful enough to hold Iike a small magnet should.
- It would be great for other applications like mechanical arms, experimental courses, etc. Applied for arduino electronics learning.
- Very easy to hookup. It's just power and a line for a signal.
- Package includes: 3 x Electromagnet module
When using, we can connect the module to the arduino MCU. After using 5V power supply, connect the SIG pin of the module to the PWM port of the arduino board, set the PWM value, and adjust the magnetic field of the module.
The larger the PWM value, the larger the magnetic field.
When the PWM value is set to the maximum (255), the iron fitting touches the electromagnet component, the adsorption force is 25N.
Features
Small electromagnet induction, with high strength suction.
Electromagnet built-in pure copper coil, strong conductivity, low power consumption.
Electromagnet electric iron shell, less remanence, integrated molding, strong magnetic conductivity.
Parameters
Working Voltage: DC 5V
Working current: 0.3A (maximum)
Maximum power: 3W
Interface Type: 3PIN (pin pitch of 2.54mm)
Package Includes:
3 x Electromagnet module for arduino
