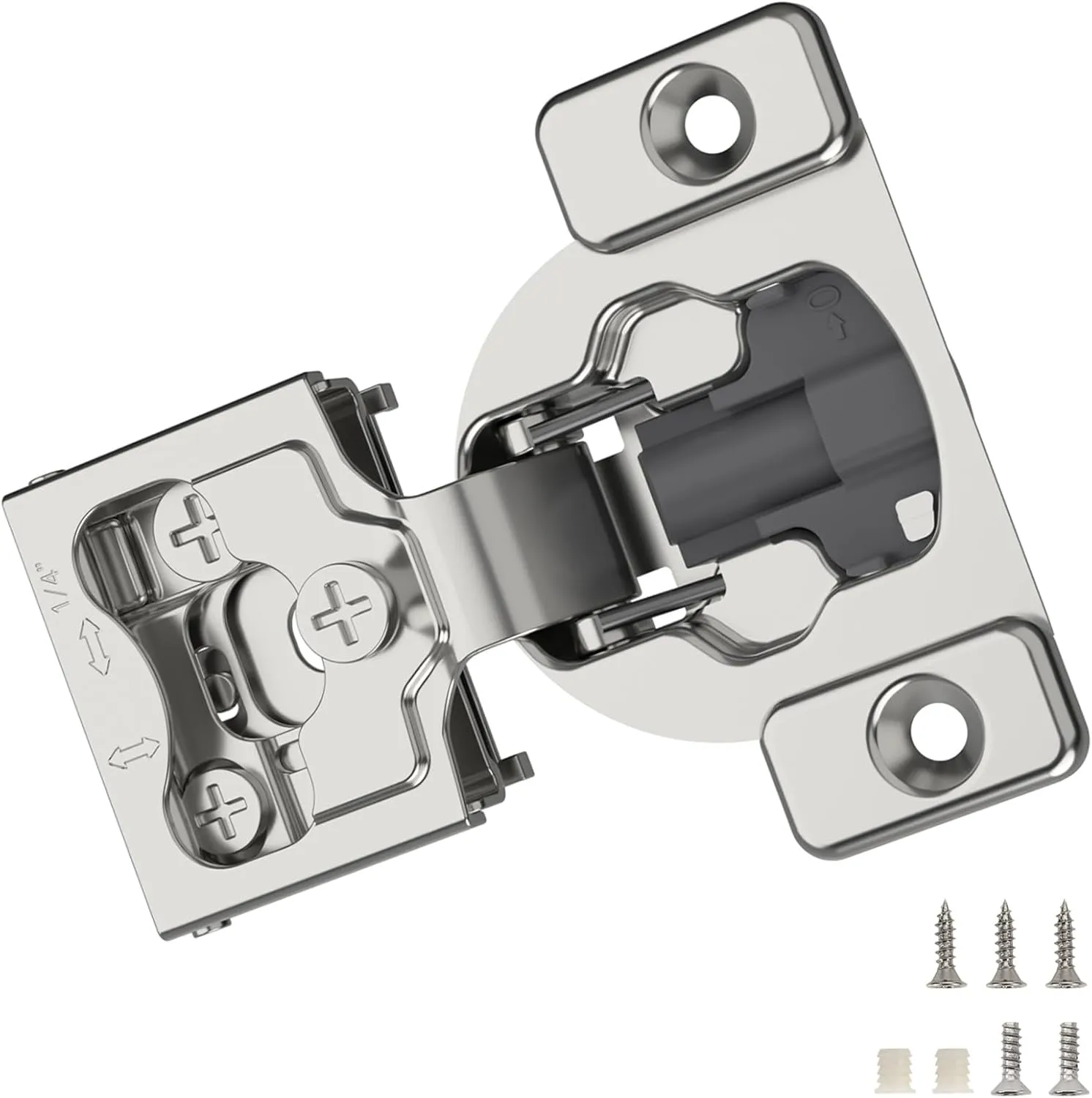

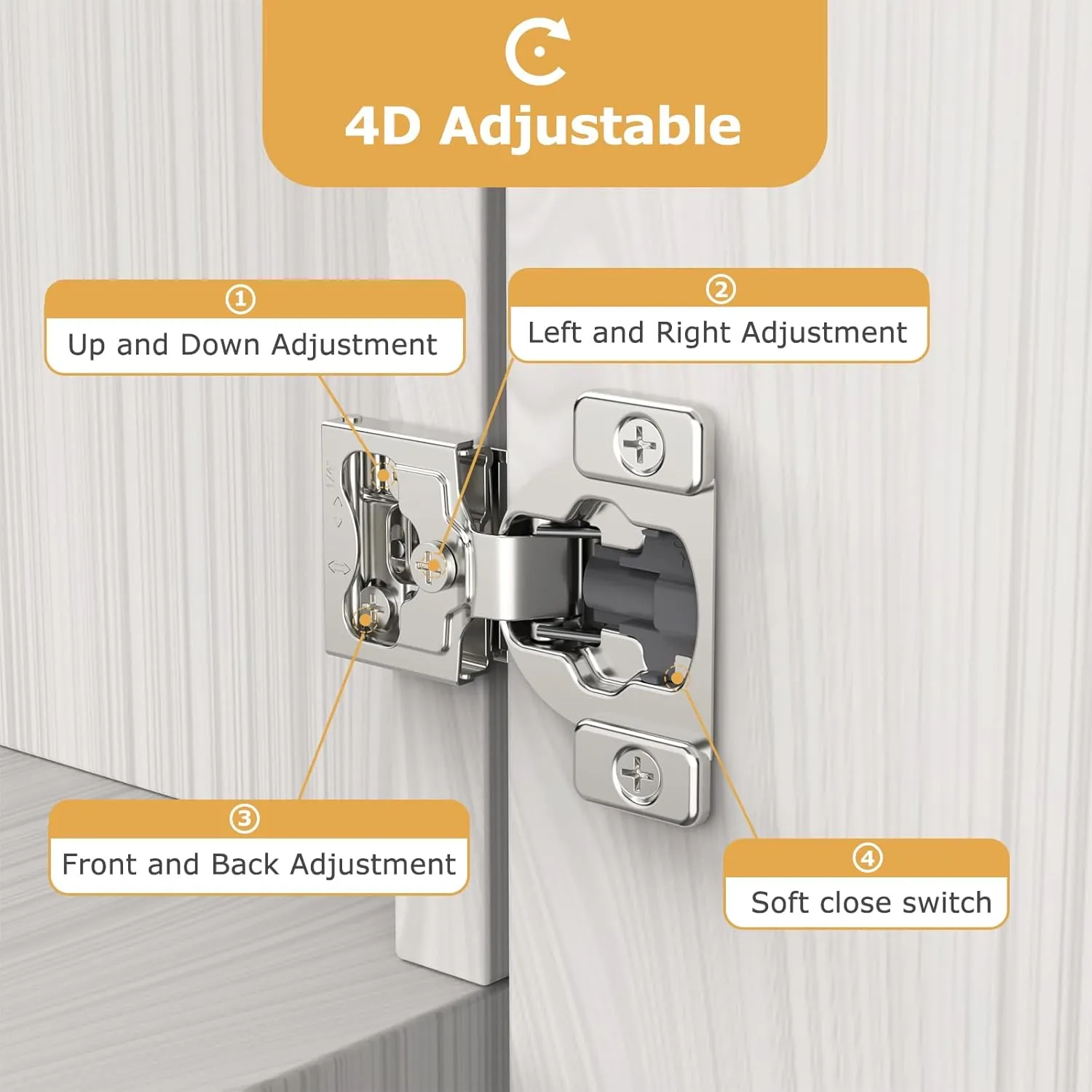

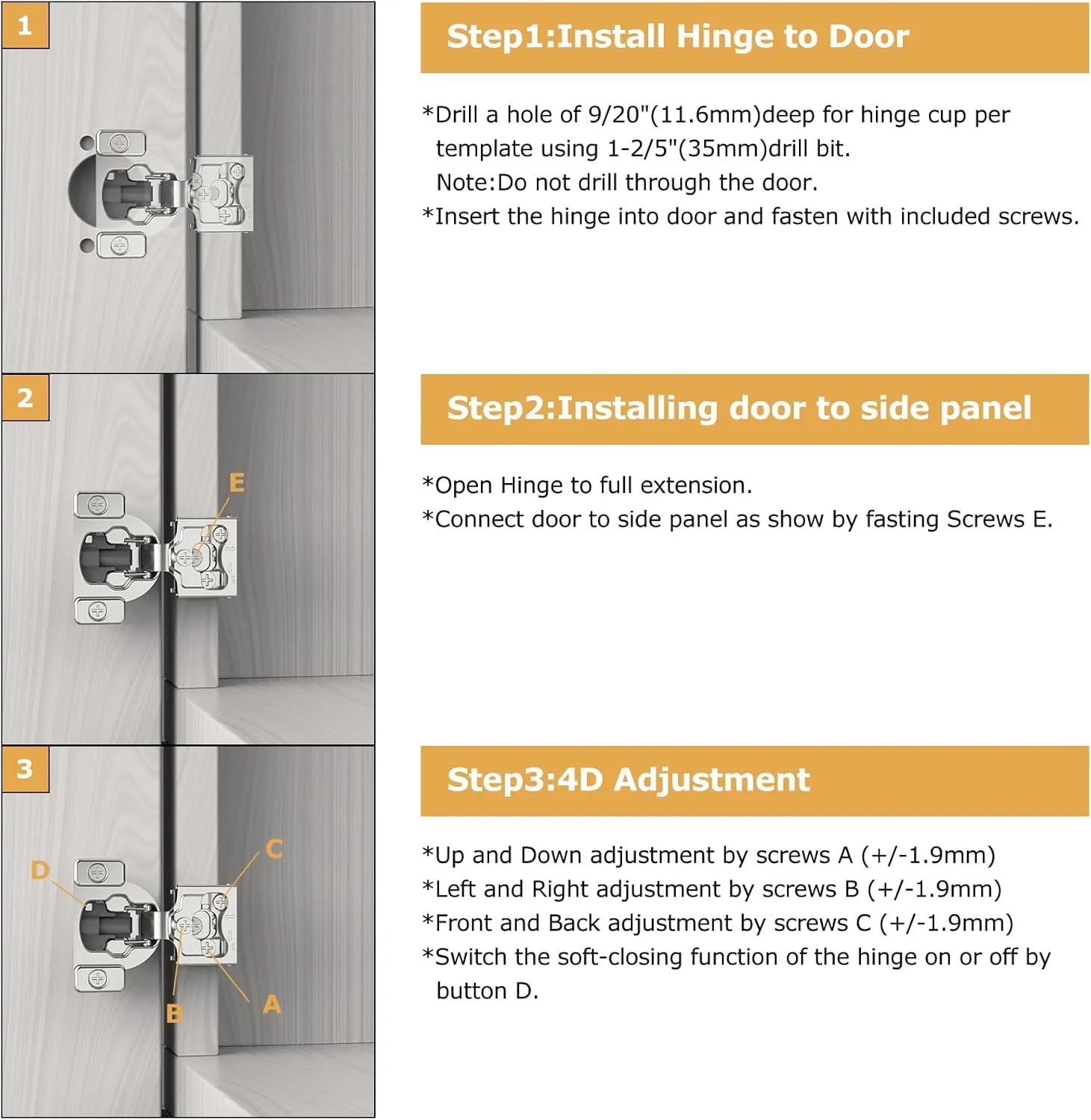

• 4D Adjustment Structure: Use a screwdriver to turn the adjustment screw on the hinge to easily adjust the cabinet door (vertical, horizontal, depth) to ensure your cabinet door is perfectly aligned. In addition, the soft-close function is designed on the nylon damper of the cup head, you can open or close the “on/off” button according to your needs for smooth and silent closing.

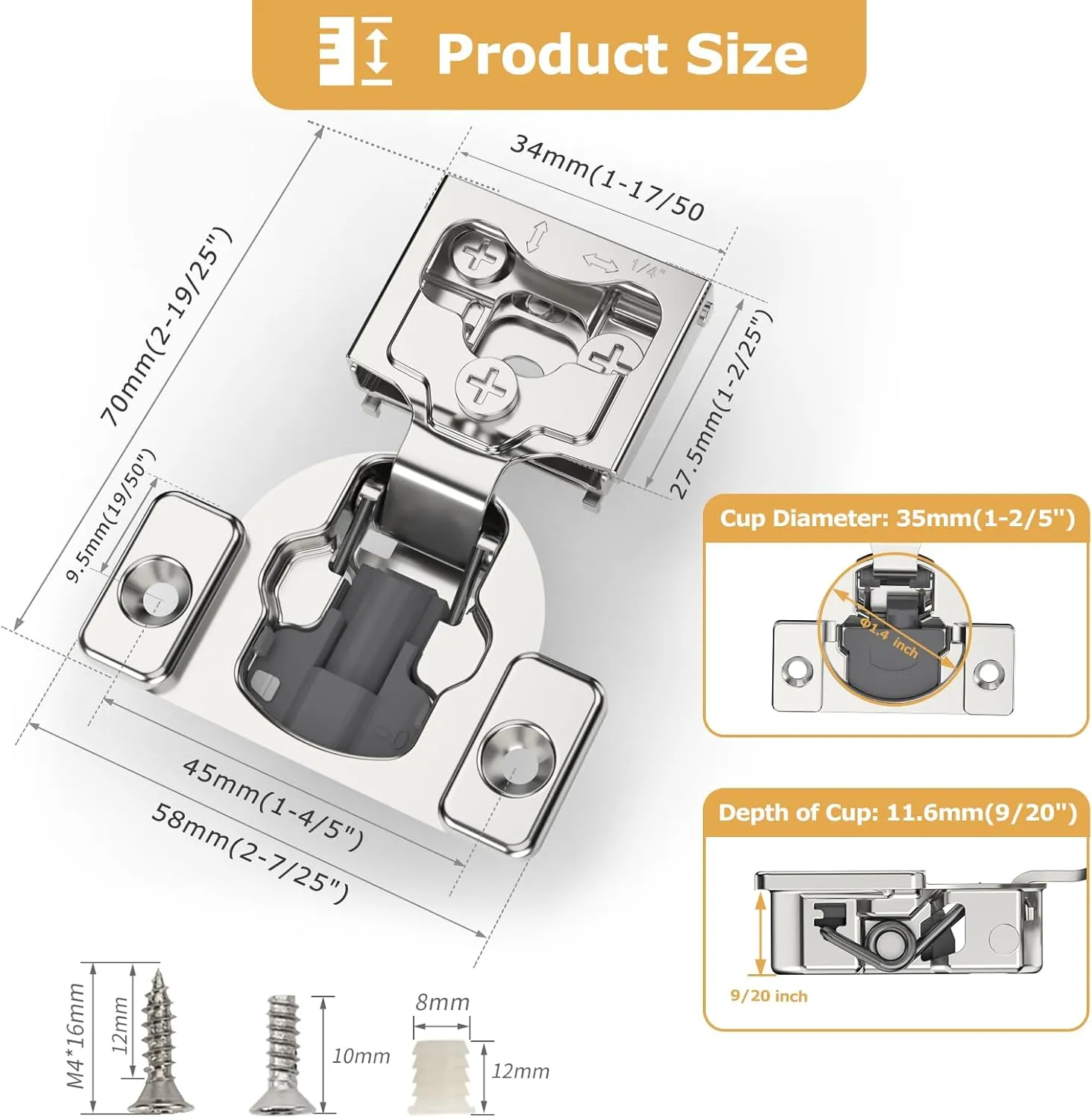

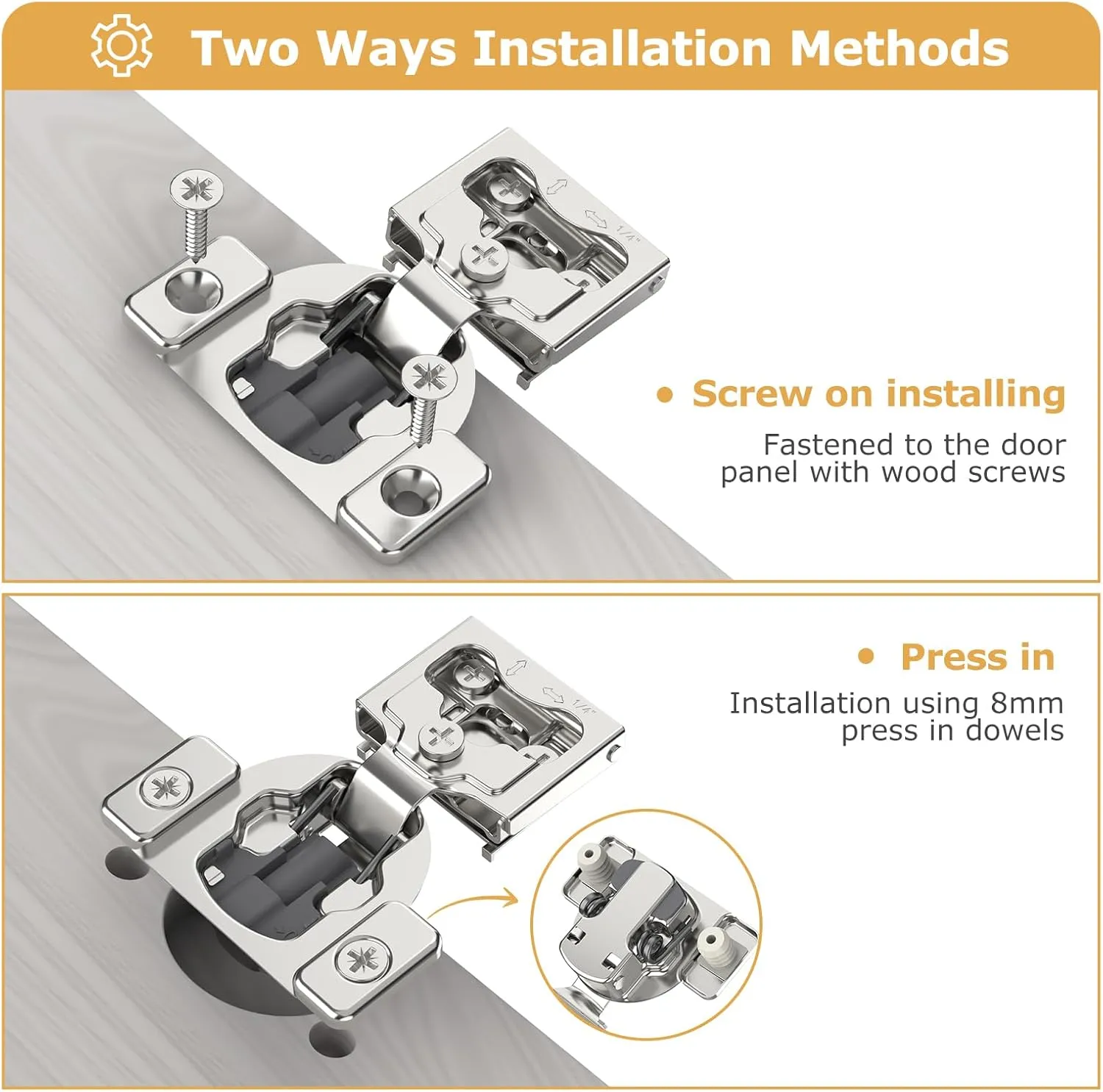

• Specification: The cup diameter is 35 mm (1-2/5"), depth of cup is 11.6mm(9/20"), hole distance: 45 mm(1-4/5"),opening angle is 105 degree, suitable for most cabinet door styles. Each overlay hinge comes with 3 self-tapping wooden screws and 2 easy-on dowels to ensure a perfect fit.

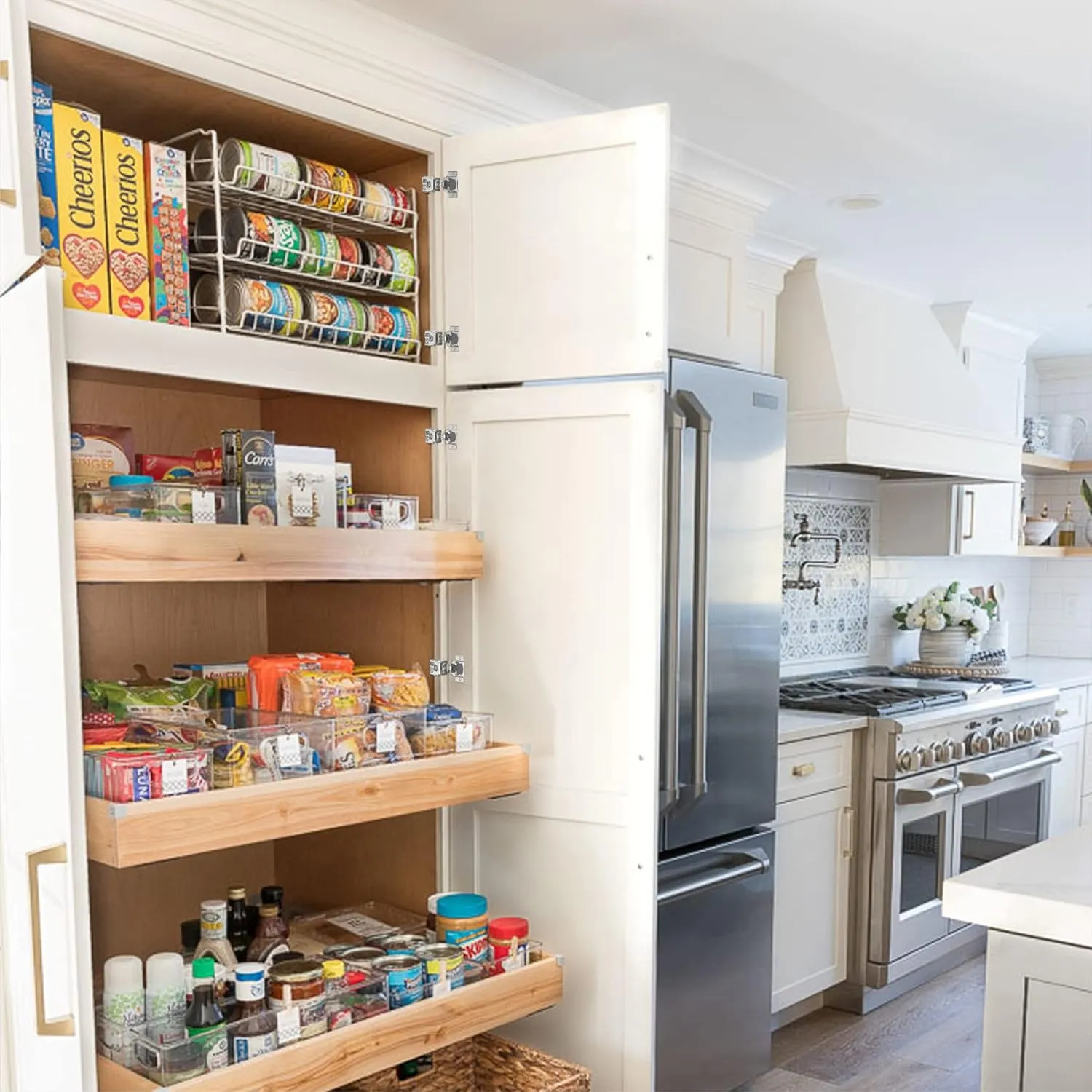

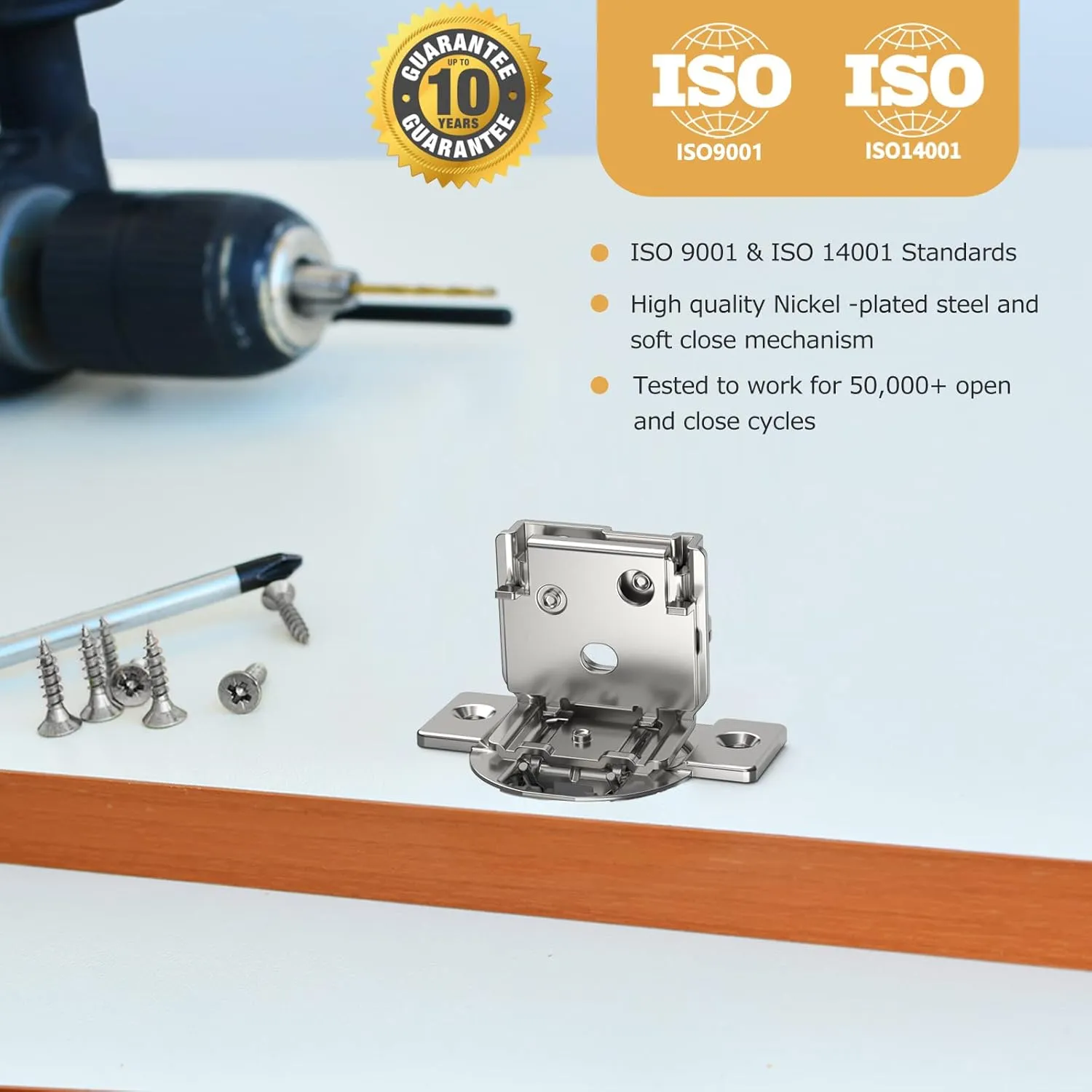

• High quality: Our cabinet hinge are made of high-quality steel, and double electroplating technology (nickel plating on the surface and brass plating on the bottom) makes our hinges more rust-proof and durable.These types hinge an ideal choice for face frame cabinets. It's useful for kitchen cabinet doors, wardrobe, tv cabinets, bookcases, wine, and other luxury door connection.
• Prevent Noise: Each 1/4 in Overlay Soft Closing Hinge has a built-in nylon damper that slows down the closing speed of the cabinet door, preventing the door from slamming and making noise while protecting your fingers
• How to Choose a Hinge: You need to pay attention to the thickness of the cabinet side panel(measure the distance the door panel overlaps the cabinet face) instead of the thickness of the cabinet door. You must choose the cabinet hinges that fit the side thickness of your cabinet. For example, if the thickness of the cabinet side panel is 1/4", then you should choose the corresponding 1/4" hinge
