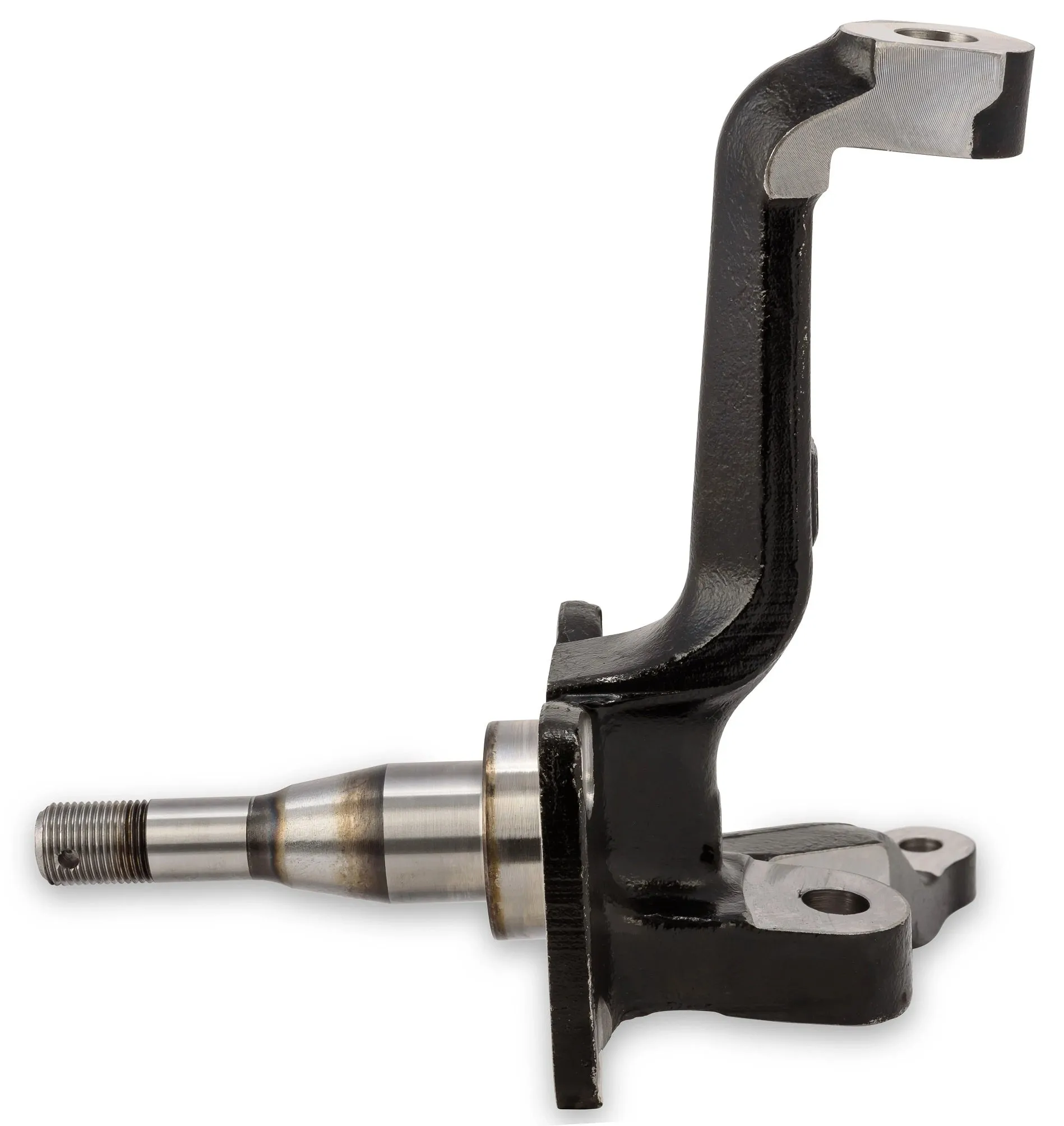

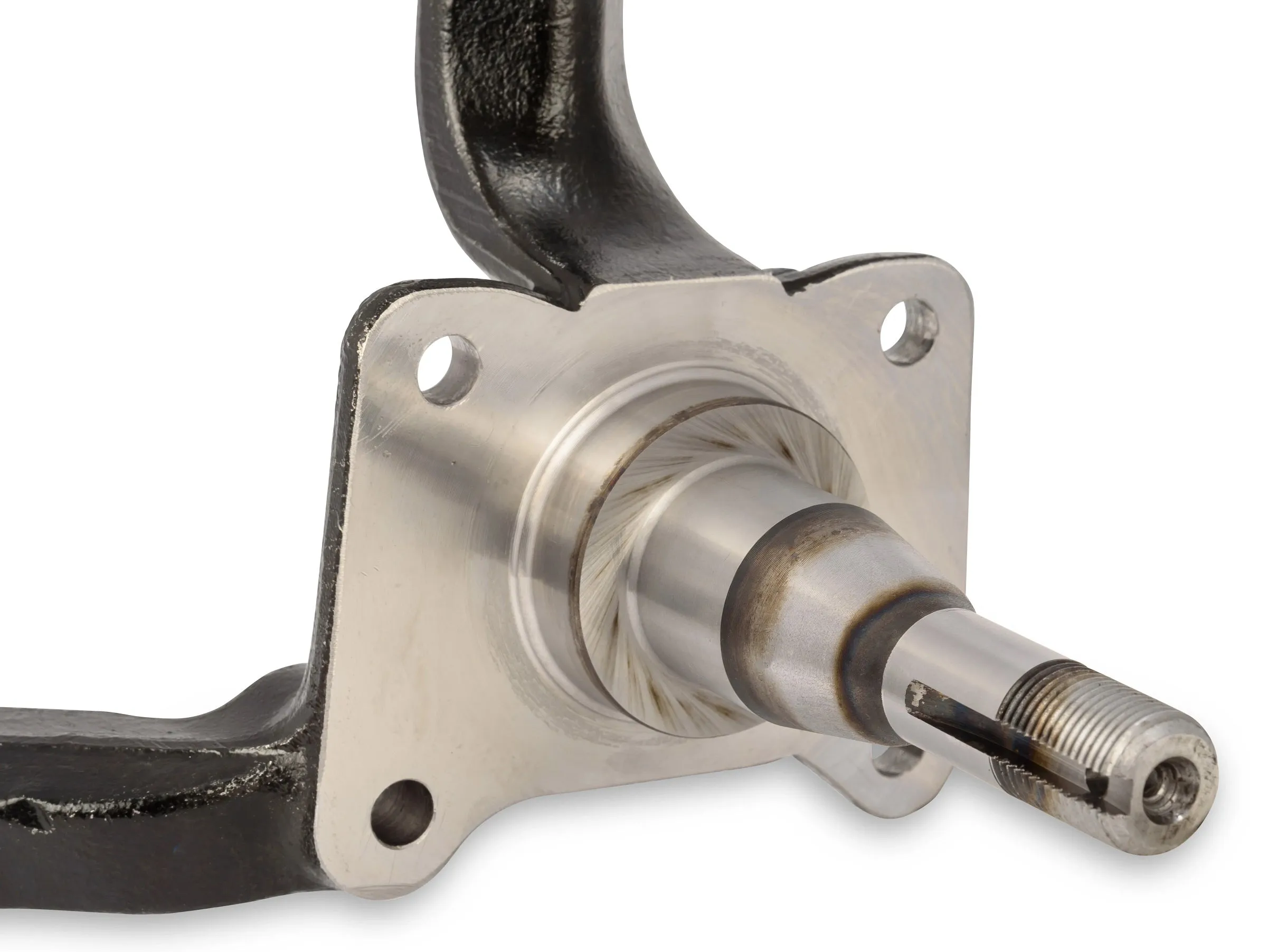

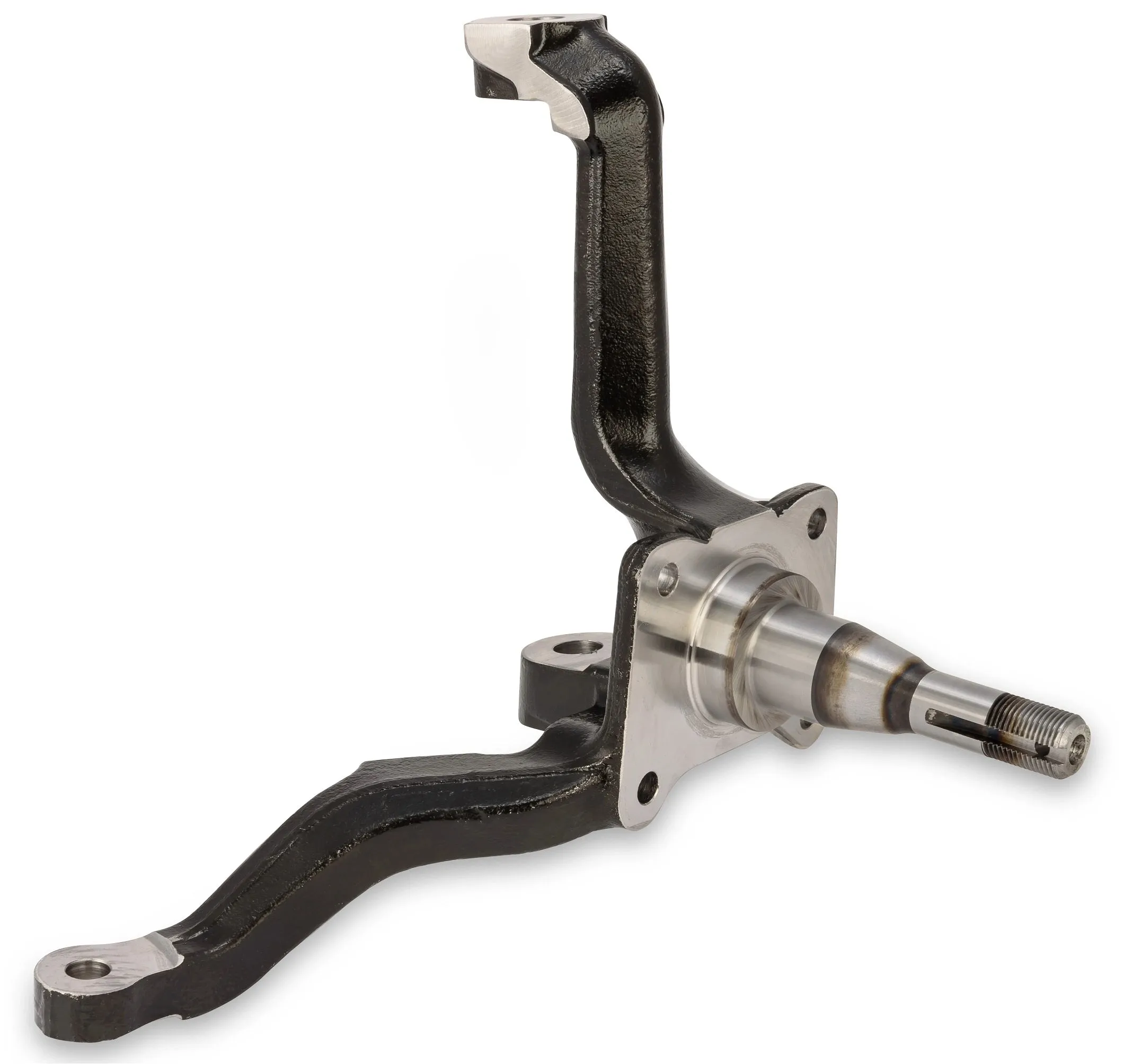

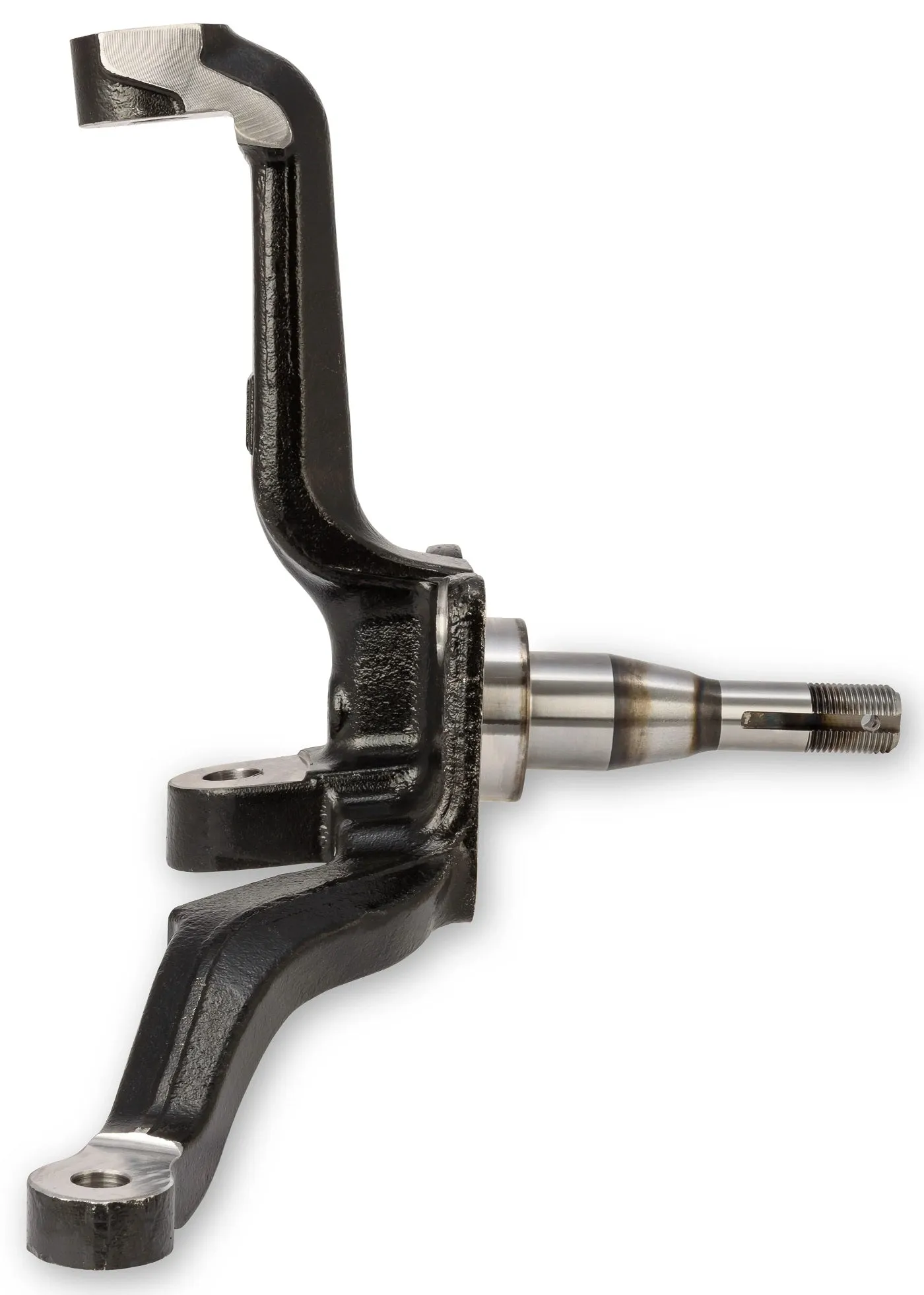

Brand New Scott Drake Brake Spindle Passenger Side with Drum Brakes
 (Part #C7OZ-3105-R).

These spindles were obsoleted long ago by Ford and have become increasingly expensive and extremely difficult to find and now Scott Drake has the answer. Our Engineering team started with a set of used, but excellent condition, Ford originals, to create 3D scans which were then used for CAD modeling and then double-checked against original Ford blueprints. No corners were cut on this critical component - they were constructed from forged ASTM 5140 grade steel, next, we applied a protective, black e-coating, and then all mounting surfaces were precision machined. We took special care to ensure bearing tolerances were identical to Ford's. For an extra measure of safety and durability, the entire spindle is heat-treated and the bearing surface is treated with additional induction hardening. All Drake spindles are 100% Magnetic Particle Tested as well. These spindles also fit a wide variety of 1960s Ford and Mercury cars.

NOTE: Drum; Front Right; All Engines. Only cars with OE drum brakes (Or disc brake conversions that are to be mounted to OE drum brake cars)

Compatibility:

• Ford:
  • 1967-1969 Mustang

Features:

• Constructed using premium forged JIS S45C grade steel

• Heat-treated snout via induction hardening

• Able to be used with both disc and drum brakes

• Finished with black e-coat for increased durability

Specs:

• Brand: Scott Drake

• Color: Black

• Hub Included: No

• Material: Steel

• Mounting Hardware Included: No

• Product Type: Steering Knuckle

• Sale Category: Suspension and Chassis
