- 3/4 Inch Overlay. Screw-On. Cup Diameter: 35mm
- Mounting Style: Wrap. Overload safety feature
- Three Dimensional Adjustment - Side, Height, and Depth
- 3/4 Inch Maximum Door Thickness

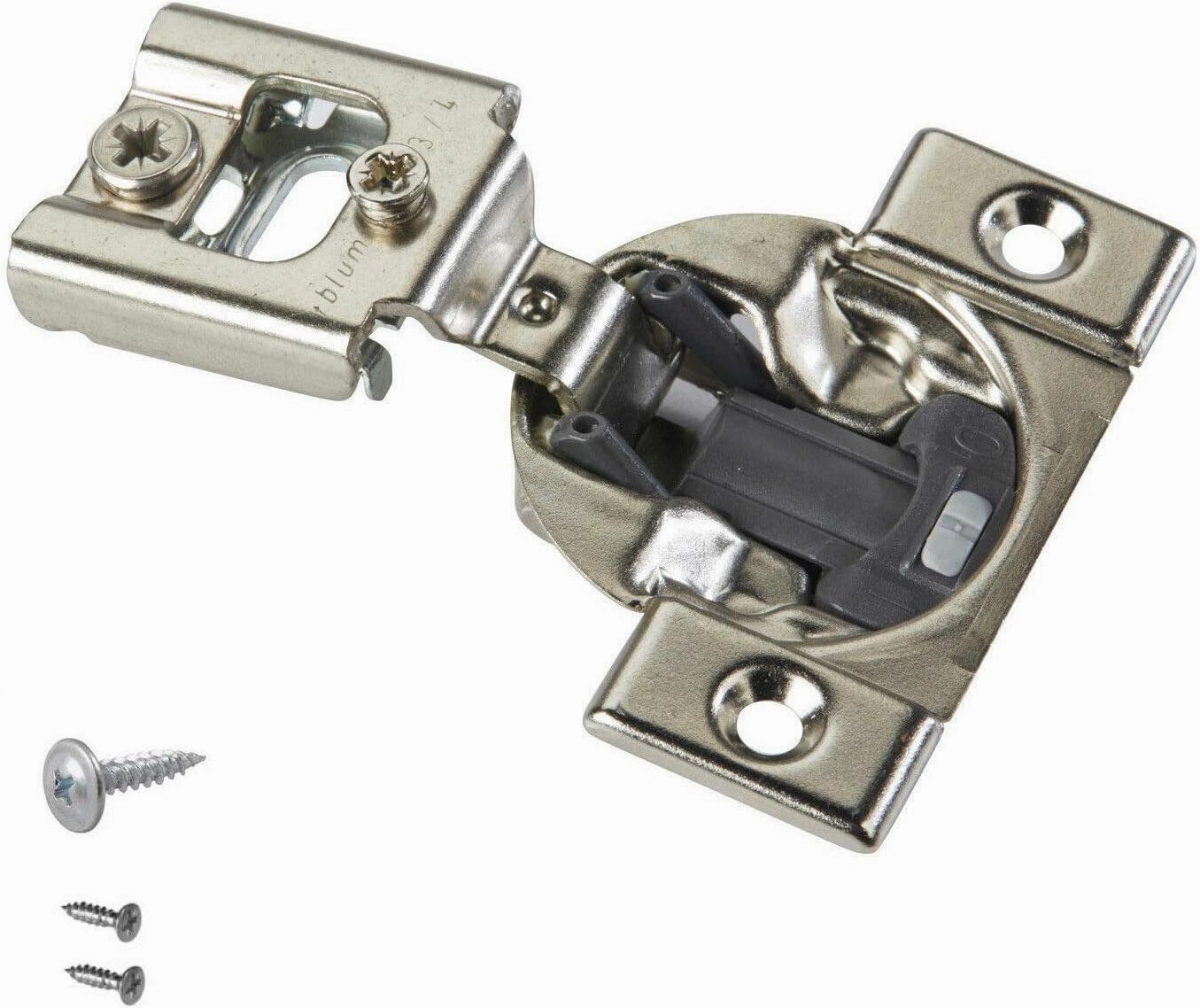

- Including: Blum Hinge(s) 38N355B.12. Set of Dexter Group screws for cabinet and door side
Interchangeability
- COMPACT BLUMOTION hinges are interchangeable with current COMPACT hinges so there is no need to change existing setups or workflows.
Overload safety feature
- This feature protects the hinge from damage if the door is slammed and maintains the BLUMOTION soft closing for the life of the hinge.
Deactivation option
- The BLUMOTION function can be easily deactivated on one of the hinges, allowing small or light doors to close with the same high quality of motion.
COMPACT hinges are small profile for face frame cabinets.
- 3/4 Inch Overlay
- Screw-On
- BLUMOTION Integrated Into the Hinge Cup
- Overload Safety Feature - Even if you slam the door, you won't damage it. The door will still close softly for the life of the cabinet.
- One-Piece Wraparound Hinge
- 3/4 Inch Maximum Door Thickness
- Self Closing
- One-piece wrap around hinge
- 105 Degree opening angle
- 35mm hinge cup
- 7/16" cup depth
- Steel, nickel plated
- Three Dimensional Adjustment - Side, Height, and Depth
- ±1/8" height adjustment
- ±1/16" cam side adjustment
- 3/32", -1/32" cam depth adjustment
- Boring Pattern 45mm
- Mounting Style: Wrap
- Cup Depth: 11mm
- Cup Diameter: 35mm
Made in:
- Hinge made in: Austria
- Dexter Group screws are made in USA
Blum, Inc. is a #1 leading manufacturer of functional hardware for the kitchen cabinet and commercial casework industries specializing in lift systems, concealed hinges and drawer runner systems.
