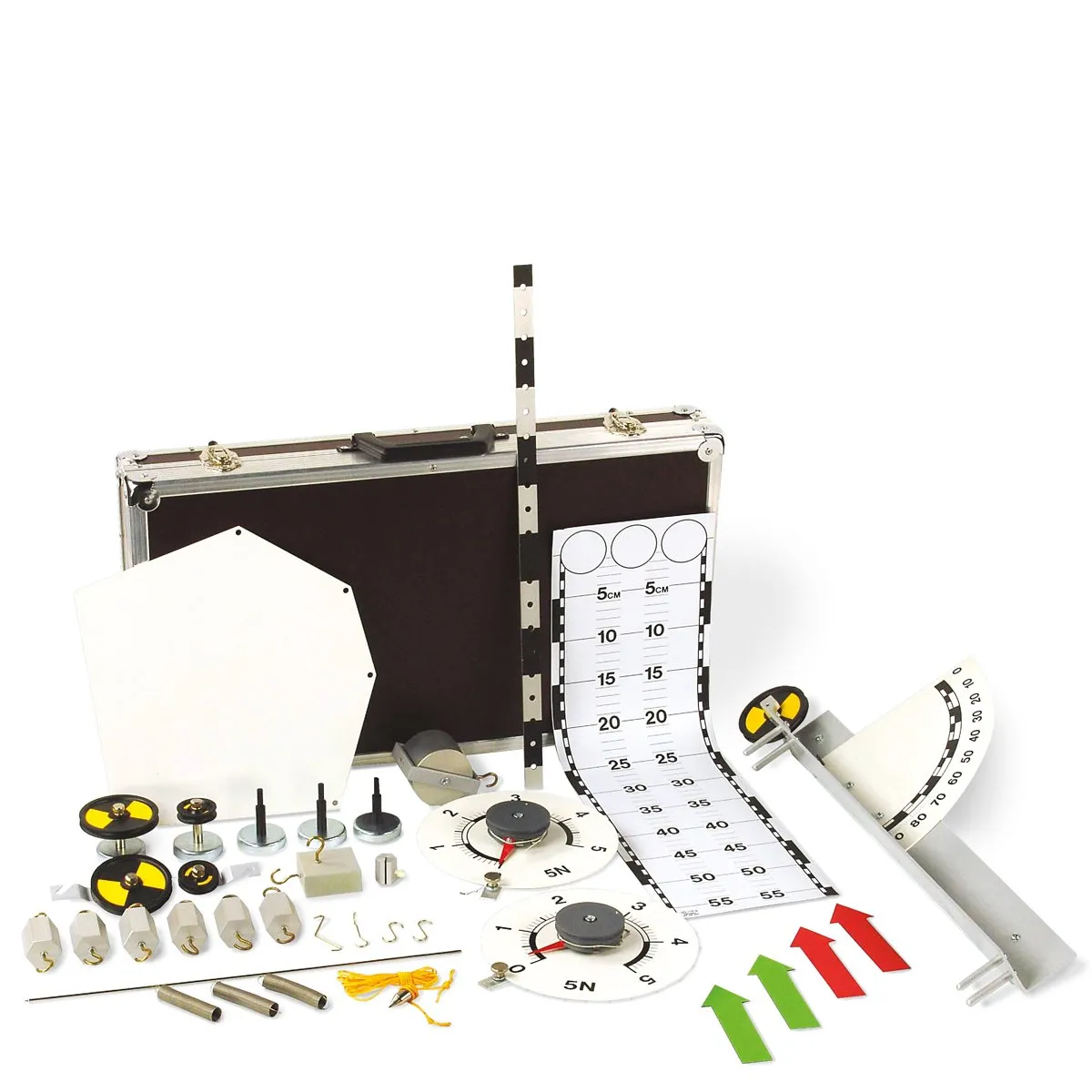

The mechanics kit for whiteboard demonstrations includes more than 25 large, coloured and easily distinguished components stored in a case with foam inlay. More than 30 experiments can be set up in rapid time. Large components ensure that experiments can be viewed from a distance. Secure attachment is guaranteed by high-grade AlNiCo magnets. Quick and easy configuration of experiments. Measuring units, vector diagramss and explanations can be provided right next to the experimental configuration on the blackboard. Contents includes: 1 inclined plane with pulley and angle scale, 1 rolling mass, 500 grams, 1 lever with 20 holes, 545mm long, 1 pointer for lever, 400mm long, 1 slotted counterweight with knurled screw, approximate 20 grams, 1 pulley, double, 70mm diameter, 40mm diameter, 1 pulley, 70mm diameter, 1 pulley, 40mm diameter, 2 round scale dynamometers, 5 newton, 3 magnetic tabs with 8mm axis, 3 springs with hook, k = 6.2 newton per meter, 1 dual scale on a magnetic foil, 600x180 square millimeters, 4 arrows and one equilateral triangle on a magnetic foil, 6 weights with 2 hooks, 100 grams each, 1 friction block, 1 set of nylon cords, 1 center of gravity plate, 1 plumb, 3 rubber grommets, 3 brass hook, 1 brass clip, 1 storage case, 1 manual. Experiment topics: inclined plane, lever laws, torques and forces, forces acting on a lever arm, force as a vector, pendulum motion, physical pendulum, fixed and movable pulleys, block and tackle, hooke’s law, coupled resonance, center of gravity, friction.

• Product Dimensions ‏ : ‎ 5.51 x 17.32 x 25.2 inches; 16.98 Pounds
• Our Recommended age ‏ : ‎ 8 years and up
• Date First Available ‏ : ‎ September 27, 2011
• Manufacturer ‏ : ‎ 3B Scientific
• Country of Origin ‏ : ‎ Germany
