- ★Application Fields: remote control helicopters, micro robot, robot arm and boats，Interface Type: Compatible with JR & Futaba interface.
- ★Stall Torque: 2.2kg/cm(6V)；Metal Gear with less noise，Amplifier type: Analog controller.
- ★Operating Voltage : 4.8V~6.0V，The starting current of the motor should be over than 1A.
- ★Operating Speed: 0.1sec/60 degree(4.8V)~0.08sec/60 degree(6.0V).
- ★MG90S: micro servo motor used , aluminum metal teeth, coreless motor, double ball bearing. Updated SG90 servo motor.
Overview:

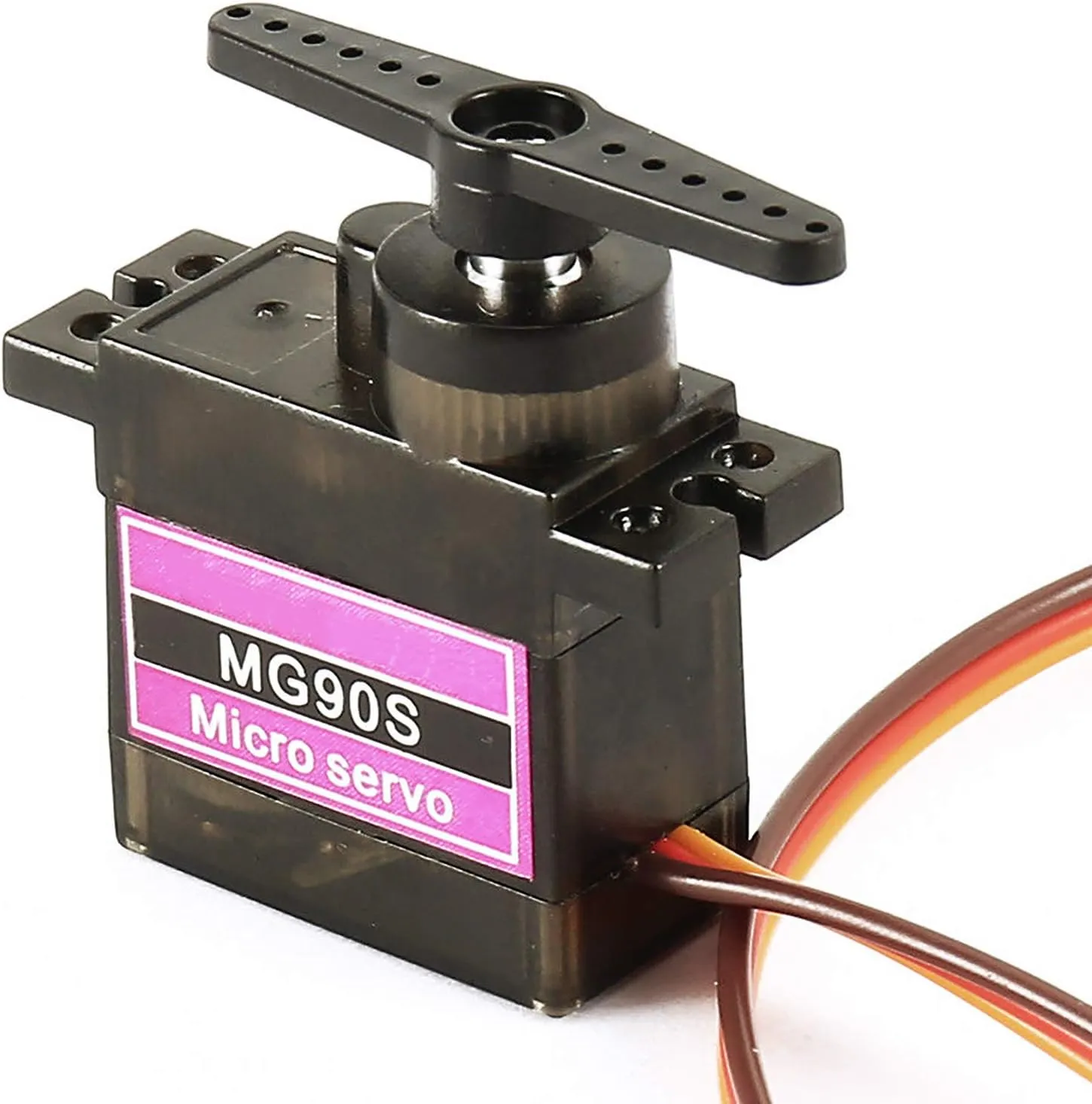

This is METAL version standard 9G micro servo--MG90S. Stronger 2.2Kg stall torque rating at 6V ( can also be run on 4.8V ). Ideal for fast EDF jets, sports or aerobatic planes where a small sized yet powerful servo is required.
Features:
Metal Gear
Full Ball Bearing
Light Weight
Less Noise
High Speed
Stable and shock proof
Specifications:
Operating Speed (4.8V no load): 0.11sec / 60 degrees
Operating Speed (6.0V no load): 0.10sec / 60 degrees
Stall Torque (4.8V): 2 kg/cm
Temperature Range: - 30 to 60 degree C
Dead Band Width: 5usec
Servos Type : Digital servo
Gear Type : All Metal gear
Operation Voltage: 4.8 - 6.0 Volts
Operation Voltage: 4.8 - 6.0 Volts
Connector type: Futaba / JR compatible
Structural Materials: Metal gear Coreless Motor DUAL BALL Axle Bearing
Fit for ALL kind of R/C Toys

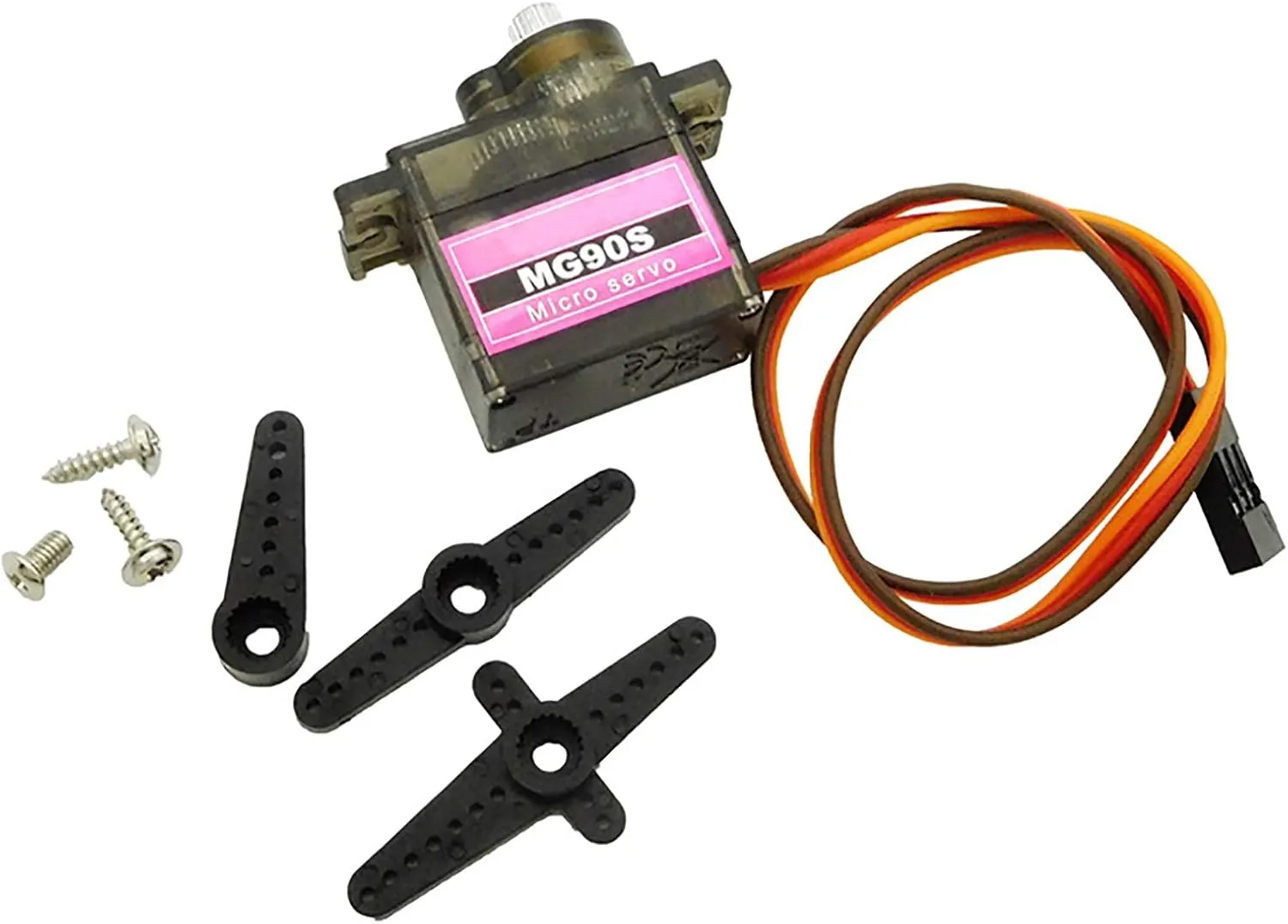

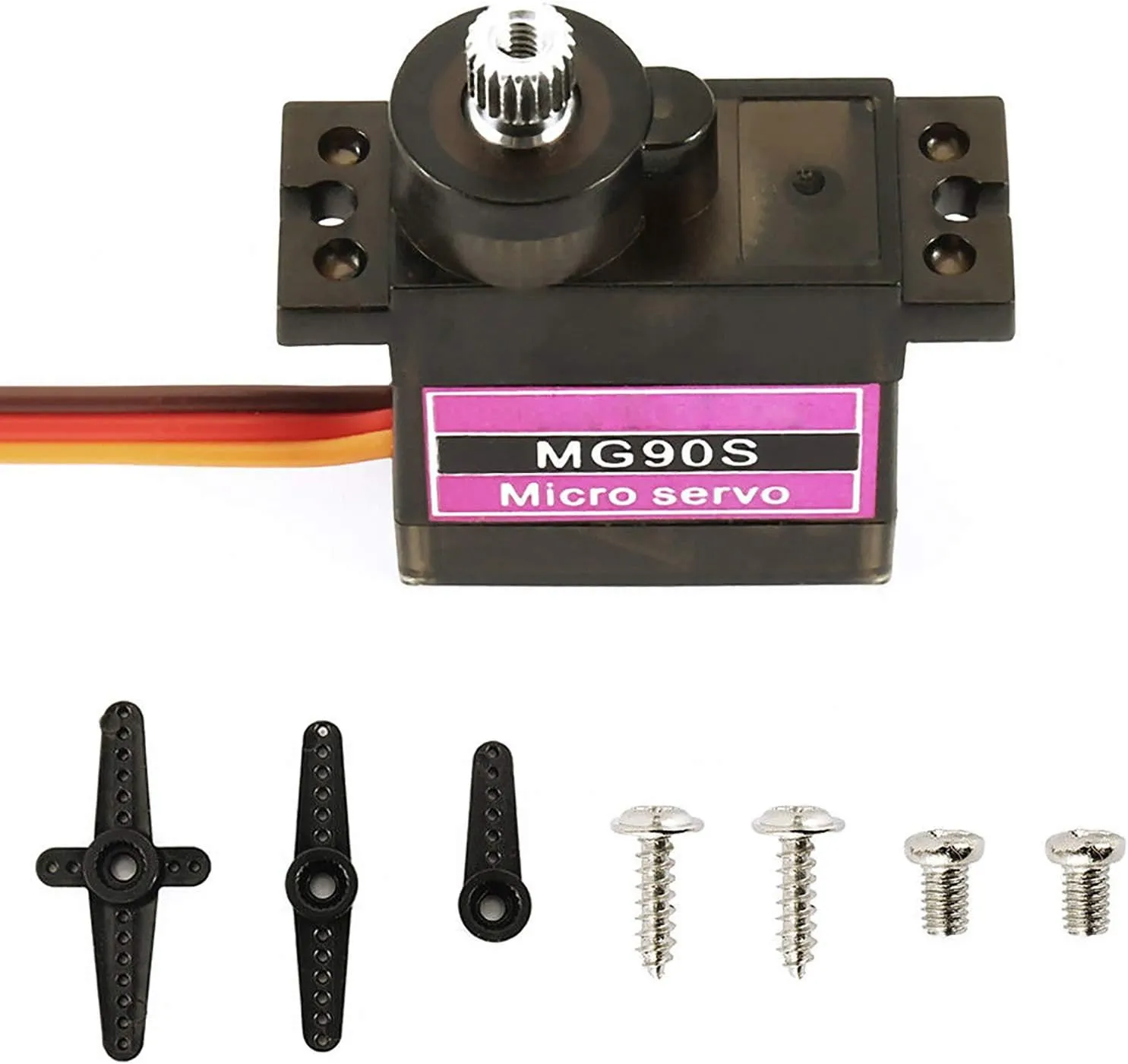

Package Content:
1 / 3 / 5 x Metal MG90S 9G Servo Motors
